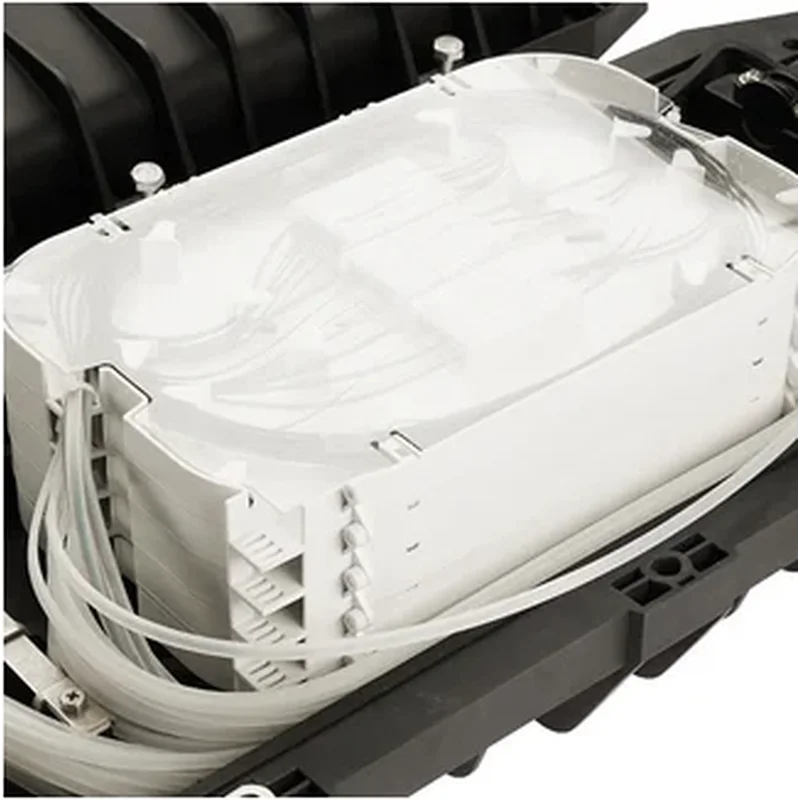

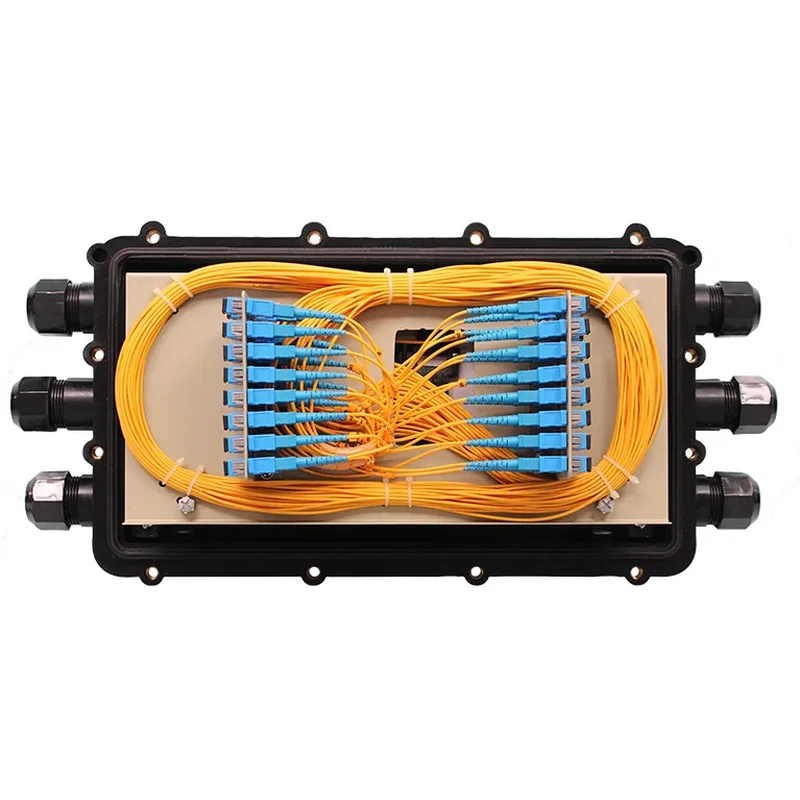

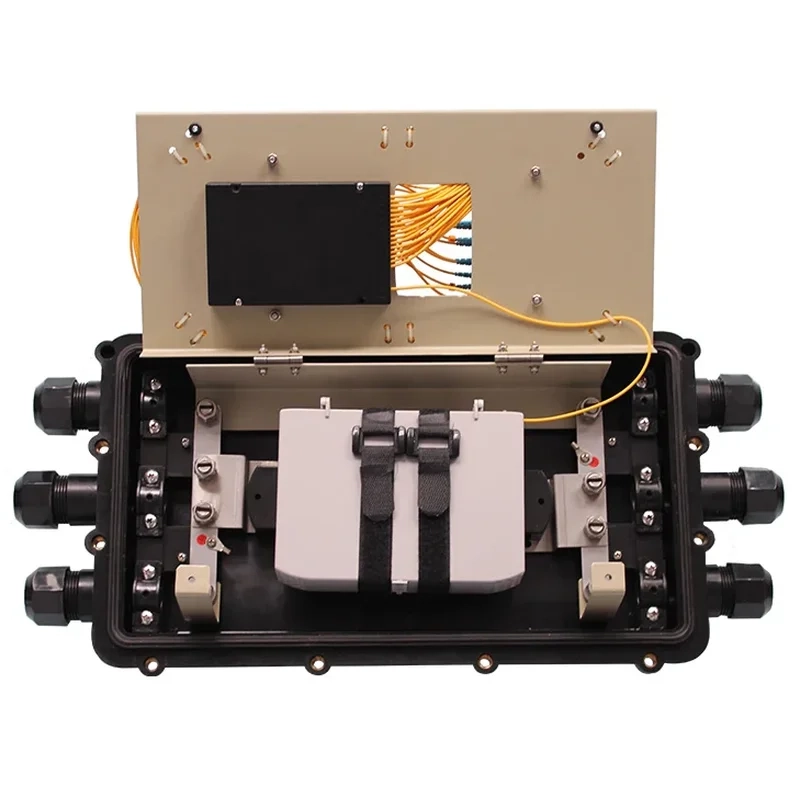

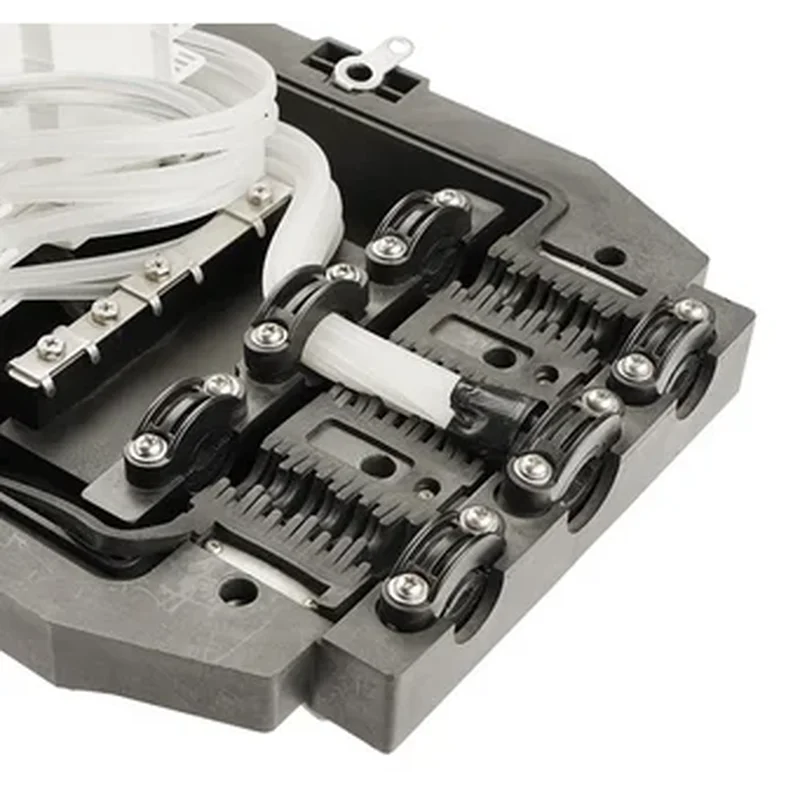

Multi-branch optical cable connector box

The optical cable splice box, also called the optical cable splice box, is where the end of the optical cable is connected. It is connected to the optical switch through the optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has e…

Type : Fiber Optic Splice Closure

Send Message Get Price

Parameters

Product Parameters

Model	Product Name	Housing Material	Sealing Material	Dimensions(mm)	Weight(kg)
HJ-GJS-8010	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	515×217×120	3.5-4.0
HJ-GJS-8011	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	515×217×150	3.5-4.5
HJ-GJS-8012	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	648×254×158	6～7
HJ-GJS-8013	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	555×217×107	4.0-4.5
HJ-GJS-8014	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	555×217×151	4.0-4.5
HJ-GJS-8015	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	455×201×120	2.5～3
HJ-GJS-8016	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	280×180×85	1.8～2.2
HJ-GJS-8017	Multi-branch Fiber Optic Splice Closure	Modified Polymer Plastic	Non-vulcanized Self-adhesive Rubber	540×242×195	/
HJ-GJS-8020	Multi-branch Fiber Optic Splice Closure	PP	Non-vulcanized Self-adhesive Rubber	410×200×110	/
HJ-GJS-8024	Multi-branch Fiber Optic Splice Closure	PP	Non-vulcanized Self-adhesive Rubber	410×255×110	/
HJ-GJS-8025	Multi-branch Fiber Optic Splice Closure	PP	Non-vulcanized Self-adhesive Rubber	410×255×110	/
HJ-GJS-8026	Multi-branch Fiber Optic Splice Closure	PP	Non-vulcanized Self-adhesive Rubber	360×220×115	/
HJ-GJS-8027	Multi-branch Fiber Optic Splice Closure	PC+ABS	Non-vulcanized Self-adhesive Rubber	470×180×125	/
HJ-GJS-8028	Multi-branch Fiber Optic Splice Closure	PC+ABS	Non-vulcanized Self-adhesive Rubber	390×195×130	/
HJ-GJS-8029	Multi-branch Fiber Optic Splice Closure	PC+ABS	Non-vulcanized Self-adhesive Rubber	450×220×110	/
HJ-GJS-8030	Multi-branch Fiber Optic Splice Closure	PC+ABS	Non-vulcanized Self-adhesive Rubber	390×210×120	/

Note: Specifications are subject to change without prior notice for product improvement.

Feature

6-port connector box, three in and three out, available specifications are Φ10~20 optical cable;

The box lids are interchangeable to distinguish different capacities. Two capacities are provided, one is 192 cores and the other is 288 cores, both of which can use 6 fiber discs;

The box body adopts mechanical seal, with good sealing performance, protection level: IP68;

Conventional installation method, suitable for wall hanging, pipe, overhead, and underground;

It has the performance of protecting fiber optic connectors from environmental influences. Provides the function of placing optical fiber connectors and storing remaining optical fibers;
